Model 3/S - BlackVue DR750X 2CH Dashcam



Model Name: DR750X-2CH Premium 4K UHD Cloud Dashcam (With or without 4G)

Color/Size/Weight:

Front: Black/Width 118.5 mm x Height 36 mm/106 g
Back: Black/Width 67.4 mm x Height 25 mm/25 g

Memory options: microSD card (32GB/64GB/128GB/256GB)

Recording modes:

Normal recording, Activity recording (when collision
is detected in normal and parking modes),
Manual recording and Parking recording (when
motion is detected)
* When using a wired power cable, the
ACC+ will activate the parking mode. When using other
methods, the G sensor will activate the parking mode.

Camera:

Front: 8-megapixel CMOS sensor
Rear: STARVISTM CMOS sensor (approx. 2.1 M Pixel)
Viewing Angle:
Front: Diagonal 162°, Horizontal 136°, Vertical 77°
Rear: Diagonal 139°, Horizontal 116°, Vertical 61
Resolution/Picture Rate:

4K UHD (3840 x 2140) @30 fps - full HD (1920 x 1080) @30 fps
* The frame rate may vary during Wi-Fi streaming.

Video codec: H.265 (HEVC), H.264 (AVC)
Picture quality: highest (Extreme), Highest, Normal
Video compression mode: MP4
Wi-Fi: built-in (802.11 a.b.g.n.ac)
GPS: built-in (Dual-Band: GPS, GLONASS)
Bluetooth: built-in (V2.1 + EDR/4.2)
LTE: external
Microphone: built-in

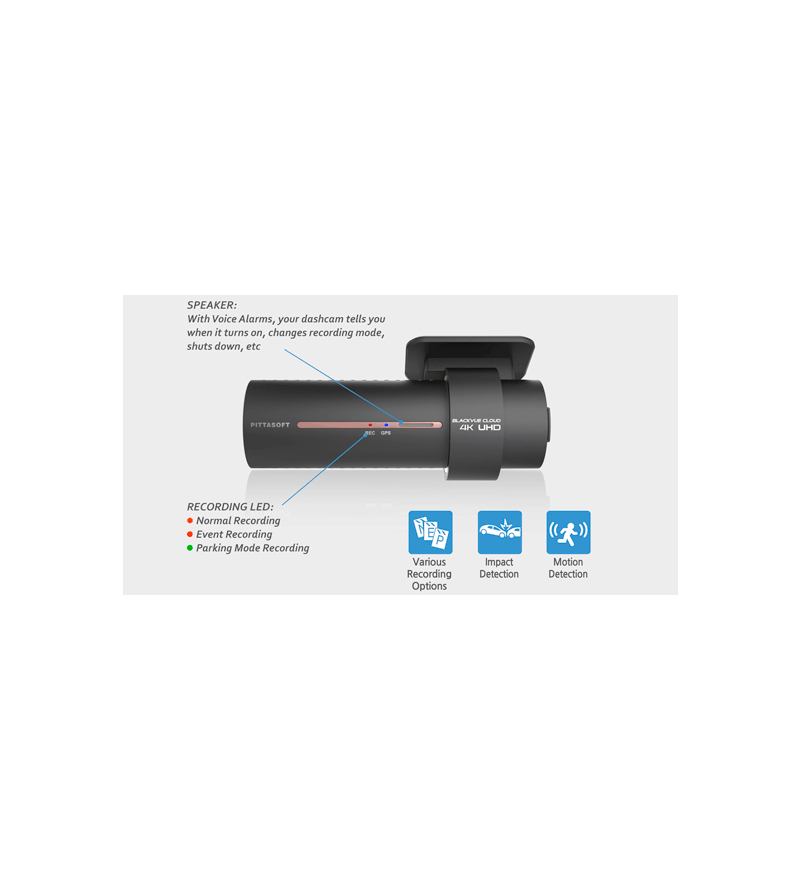

Speaker (Voice Guidance): built-in
Lights: recording LED, GPS/BT LED, Wi-Fi LED, front security LED, proximity sensor LED

Button:

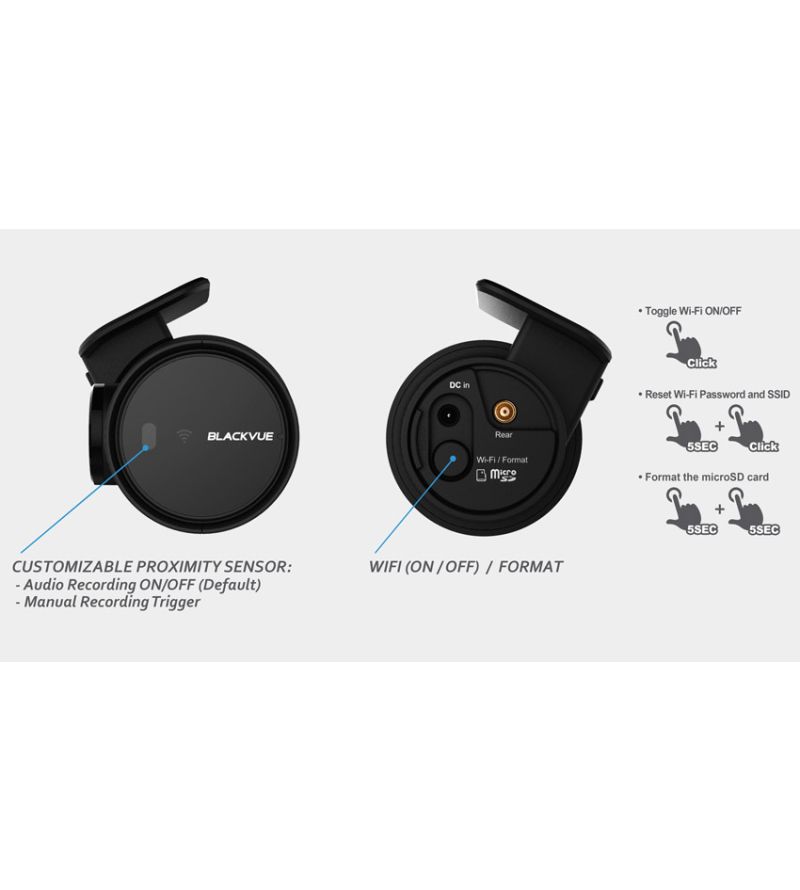

Wi-Fi button:
* Press this once to turn Wi-Fi on or off.
Proximity sensor:
Touching the proximity sensor turns audio recording
on/off or activates manual recording,
depending on the rmware settings.

Sensor: 3-axis acceleration sensor
Backup battery: built-in supercapacitor
Input power: DC 12 V - 24 V (DC Plug (Ø3.5 x Ø1.35)) to wires (black: GND / yellow: B+ / red: ACC)

Power consumption:
Normal mode (Wi-Fi on / GPS on / 2KAN): 450mA/hour
Normal mode (Wi-Fi off / GPS on / 2KAN): 410mA/hour
Parking mode (Wi-Fi on / GPS off / 2KAN): 365mA/hour
Parking mode (Wi-Fi off / GPS off / 2KAN): 325mA/hour
* Actual power consumption may vary depending on usage and
the operating and environmental conditions.

Operating temperature: -20 °C - 70 °C (-4 °F - 158 °F)
Storage temperature: -20 °C - 90 °C (-4 °F - 194 °F)
Breakdown at high temperature: Approx. 75 °C (167 °F)
Certifications: FCC, CE, RoHS, Telec, WEEE, IC

Software: blackVue Viewer
* Windows 7 or newer and Mac Yosemite OS X (10.10) or
newer
Application BlackVue application (Android 5.0 or newer, iOS 9.0 or newer)
Other: custom format free file management system



BLACKVUE APP (IOS, ANDROID) AND VIEWER (WINDOWS / MAC)

Easily manage your video files. Both the BlackVue app and the Viewer can be downloaded and used for free.

Allows you to easily change your BlackVue configuration settings and browse your videos in an intuitive way.

The BlackVue app connects with your BlackVue via Wi-Fi to access files and allows you to monitor Live View in real time for easy setup and positioning of your dashcam.



Optional: Mounting bracket for BlackVue dashcam.

With this custom-made mounting bracket you mount the BlackVue dashcam seamlessly to the rearview mirror of your Tesla.
