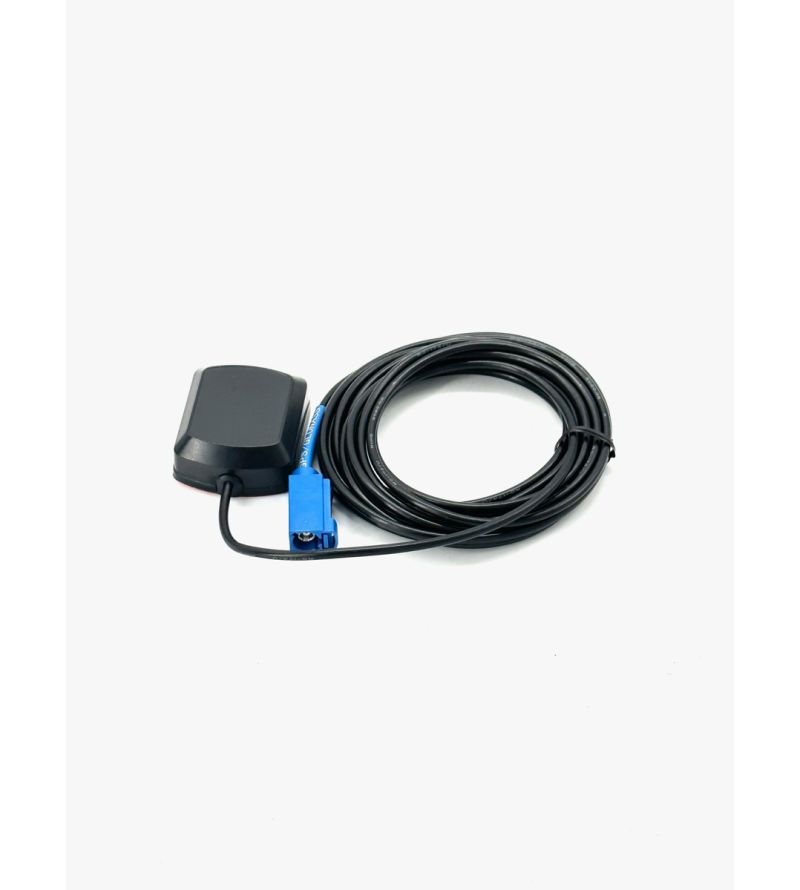

Tesla GPS Antenna
€90.75 €75.00
Availability : In stock
Only 4 left
Not in stock right now. The delivery time may be longer than usual.
SKU:
TGPSA
This GNSS antenna can be used on an existing GNSS receiver, car radio or vehicle multimedia receiver.
Specification
- Connector: 1 x FAKRA C Jack
- FAKRA C: RAL 5005 Signal blue
- Frequency range: 1575.42 MHz
- GALILEO: E1 1.5754200 GHz, GPS: L1, 1.5754200 GHz
- Bandwidth: 2 MHz
- Antenna gain: 27 dBi
- Impedance: 50 Ohm
- Housing material: ABS
- Colour: black
- Protection class: IP67
- Cable type: RG 174 / U
- Cable colour: black
- Cable attenuation: 1.1 dB @ 1500 MHz per metre
- Cable length incl. connector: approx. 5 m
- Dimensions (LxWxH): 45 x 37.0 x 12.0 mm
- DC input: 3.0 - 5.5 V
- Power consumption:
11 mA @ 3.0 V typ.
15 mA @ 3.0 V max.
